High Precision BT-ER Collet Chuck – CNC Tool Holder, Spring Type, ER16–ER40
Specification
Thank you for your interest in our collet chuck. The collet chuck with standard metric pull stud threads—M12 for BT30, M16 for BT40, and M24 for BT50—in accordance with JIS B 6339, and compatible with ER collets ranging from ER16 to ER50.
Any further info. Feel free to contact us.

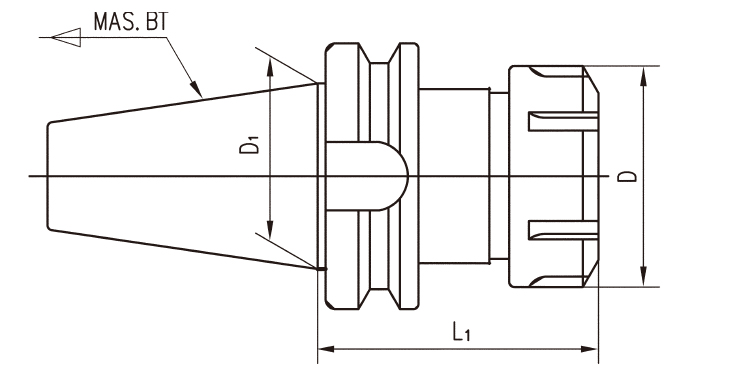

| Model | D | L1 | D1 | Oder No. |
| BT30×ER16-70 | 28 | 70 | 31.75 | 760-0028 |
| BT30×ER20-70 | 34 | 70 | 31.75 | 760-0029 |
| BT30×ER25-70 | 42 | 70 | 31.75 | 760-0030 |
| BT30×ER32-70 | 50 | 70 | 31.75 | 760-0031 |
| BT30×ER40-80 | 63 | 80 | 31.75 | 760-0032 |
| BT40×ER16-70 | 28 | 70 | 44.45 | 760-0033 |
| BT40×ER20-70 | 34 | 70 | 44.45 | 760-0034 |
| BT40×ER20-100 | 34 | 100 | 44.45 | 760-0035 |
| BT40×ER20-150 | 34 | 150 | 44.45 | 760-0036 |
| BT40×ER25-60 | 42 | 60 | 44.45 | 760-0037 |
| BT40×ER25-70 | 42 | 70 | 44.45 | 760-0038 |
| BT40×ER25-90 | 42 | 90 | 44.45 | 760-0039 |
| BT40×ER25-100 | 42 | 100 | 44.45 | 760-0040 |
| BT40×ER25-150 | 42 | 150 | 44.45 | 760-0041 |
| BT40×ER32-70 | 50 | 70 | 44.45 | 760-0042 |
| BT40×ER32-100 | 50 | 100 | 44.45 | 760-0043 |
| BT40×ER32-150 | 50 | 150 | 44.45 | 760-0044 |
| BT40×ER40-70 | 63 | 70 | 44.45 | 760-0045 |
| BT40×ER40-80 | 63 | 80 | 44.45 | 760-0046 |
| BT40×ER40-120 | 63 | 120 | 44.45 | 760-0047 |
| BT40×ER40-150 | 63 | 150 | 44.45 | 760-0048 |
| BT50×ER16-70 | 28 | 70 | 69.85 | 760-0049 |
| BT50×ER16-90 | 28 | 90 | 69.85 | 760-0050 |
| BT50×ER16-135 | 28 | 135 | 69.85 | 760-0051 |
| BT50×ER20-70 | 34 | 70 | 69.85 | 760-0052 |
| BT50×ER20-90 | 34 | 90 | 69.85 | 760-0053 |
| BT50×ER20-135 | 34 | 135 | 69.85 | 760-0054 |
| BT50×ER20-150 | 34 | 150 | 69.85 | 760-0055 |
| BT50×ER20-165 | 34 | 165 | 69.85 | 760-0056 |
| BT50×ER25-70 | 42 | 70 | 69.85 | 760-0057 |
| BT50×ER25-135 | 42 | 135 | 69.85 | 760-0058 |
| BT50×ER25-165 | 42 | 165 | 69.85 | 760-0059 |
| BT50×ER32-70 | 50 | 70 | 69.85 | 760-0060 |
| BT50×ER32-80 | 50 | 80 | 69.85 | 760-0061 |
| BT50×ER32-100 | 50 | 100 | 69.85 | 760-0062 |
| BT50×ER32-120 | 50 | 120 | 69.85 | 760-0063 |
| BT50×ER40-80 | 63 | 80 | 69.85 | 760-0064 |
| BT50×ER40-100 | 63 | 100 | 69.85 | 760-0065 |
| BT50×ER40-120 | 63 | 120 | 69.85 | 760-0066 |
| BT50×ER40-135 | 63 | 135 | 69.85 | 760-0067 |
| BT50×ER50-90 | 78 | 90 | 69.85 | 760-0068 |
| BT50×ER50-120 | 78 | 120 | 69.85 | 760-0069 |
Application
Functions For BT-ER Collet Chucks:
BT-ER collet chucks are used to hold cutting tools through ER collets. They offer high concentricity, strong clamping force, and are suitable for milling, drilling, tapping, and reaming on CNC machining centers.
Usage and Precautions For BT-ER Collet Chucks:
● Choose the correct ER collet based on tool shank diameter.
● Insert the collet into the nut, aligning the groove properly.
● Place the tool into the collet and screw the nut onto the holder.
● Tighten the nut using the proper wrench and torque.
● Mount the holder to the machine spindle for operation.
Usage and Precautions For BT-ER Collet Chucks:
● Keep all contact surfaces clean before assembly.
● Do not overtighten to avoid damaging the collet or tool.
● Use only tools within the clamping range of the selected collet.
● Inspect the taper and bore regularly for wear.
● Store in a clean, dry place to prevent rust.
