We warmly welcome you to explore our website and discover the ISO529 taps.
We’re delighted to offer you complimentary samples for testing of ISO529 taps, and we’re here to provide you with OEM, OBM, and ODM services.

Below are the product specifications:
● Thread Types: Metric / British (BSW, BSF) / Unified (UNC, UNF)
● Flute Styles: Straight Fluted / Spiral Fluted / Spiral Pointed
● Coatings: Bright / TiN / TiAlN
● Materials: HSS / HSS-E (Cobalt High Speed Steel) / 9CrSi

If you have any questions or would like to inquire about pricing, please don’t hesitate to reach out to us.

WhatsApp Email

Specification

Application

Advantage

Matching Items

Solution

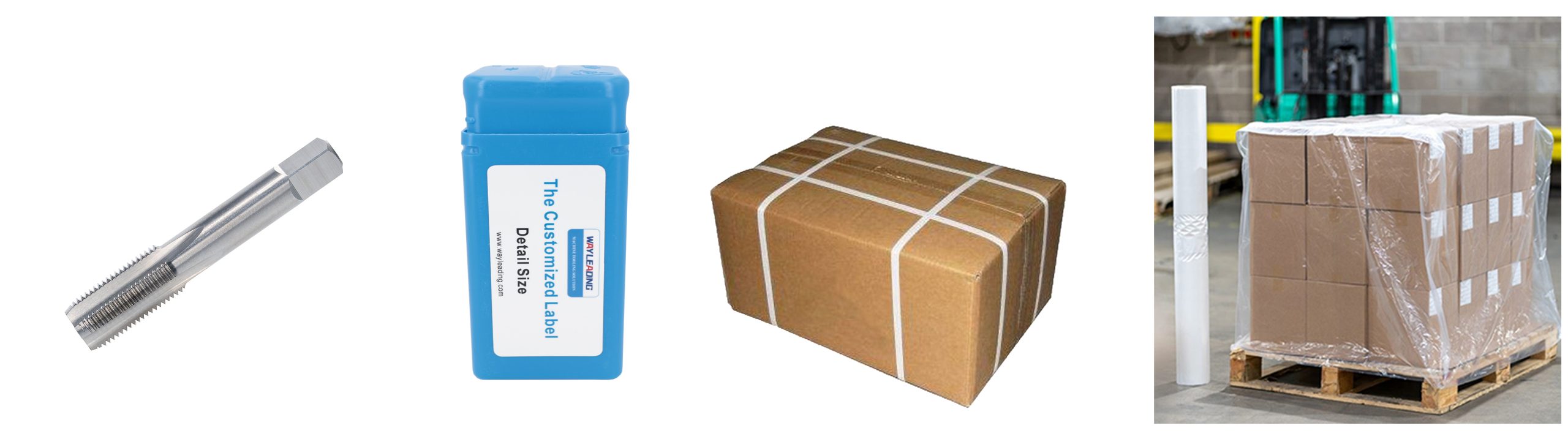

Packing

Specification

We are pleased that you are interested in our ISO529 taps. Our ISO 529 standard taps are suitable for both hand and machine use, delivering high precision and reliability across a wide range of threading applications. These taps offer excellent cutting performance, durability, and chip control, making them ideal for various workpiece materials and production environments.

Any further info. Feel free to contact us.

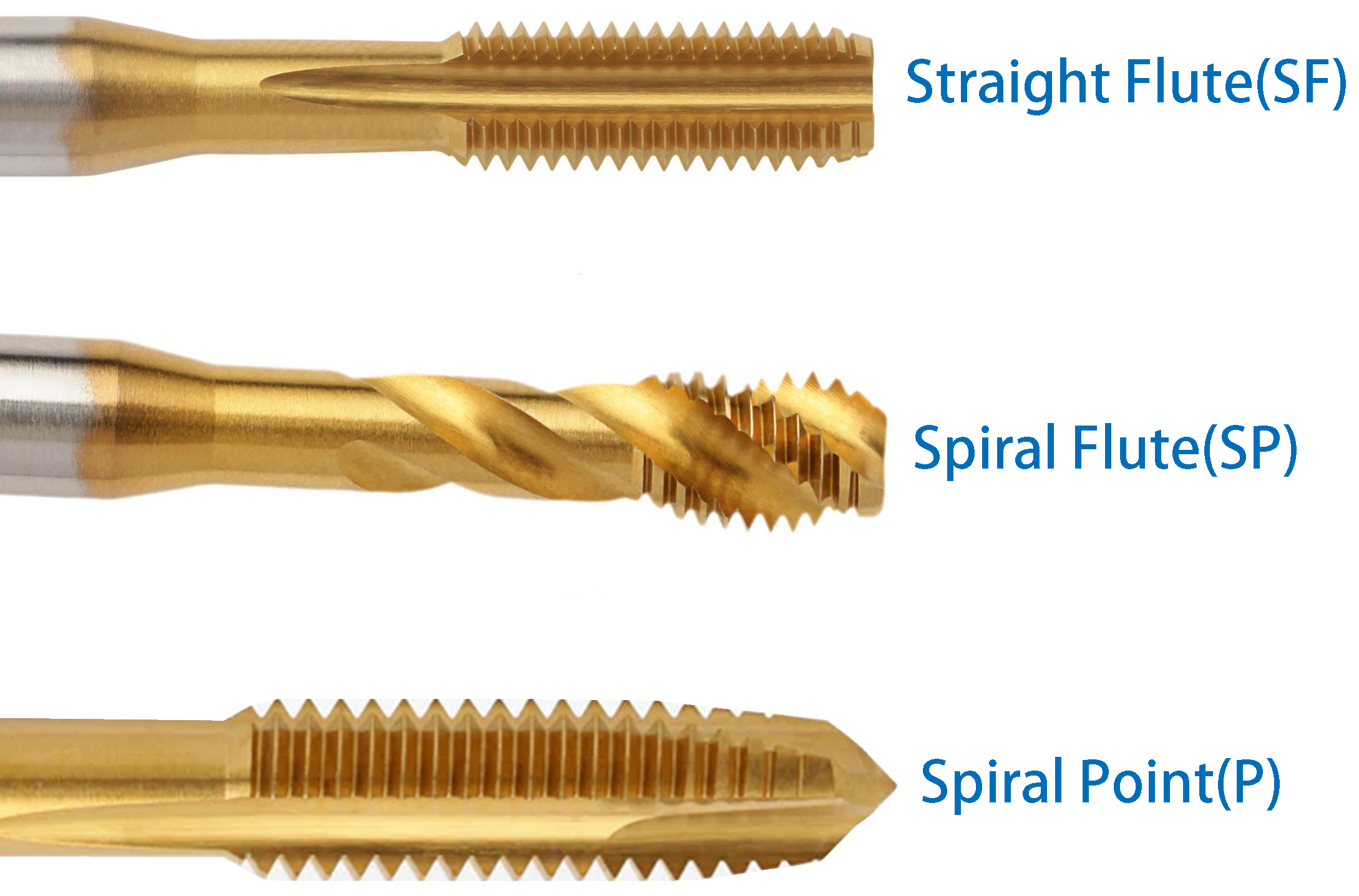

Spiral fluted: ideal for blind holes in machine tapping
Spiral pointed: suited for through holes in machine tapping
Straight fluted: typically use the second tap for machine operations

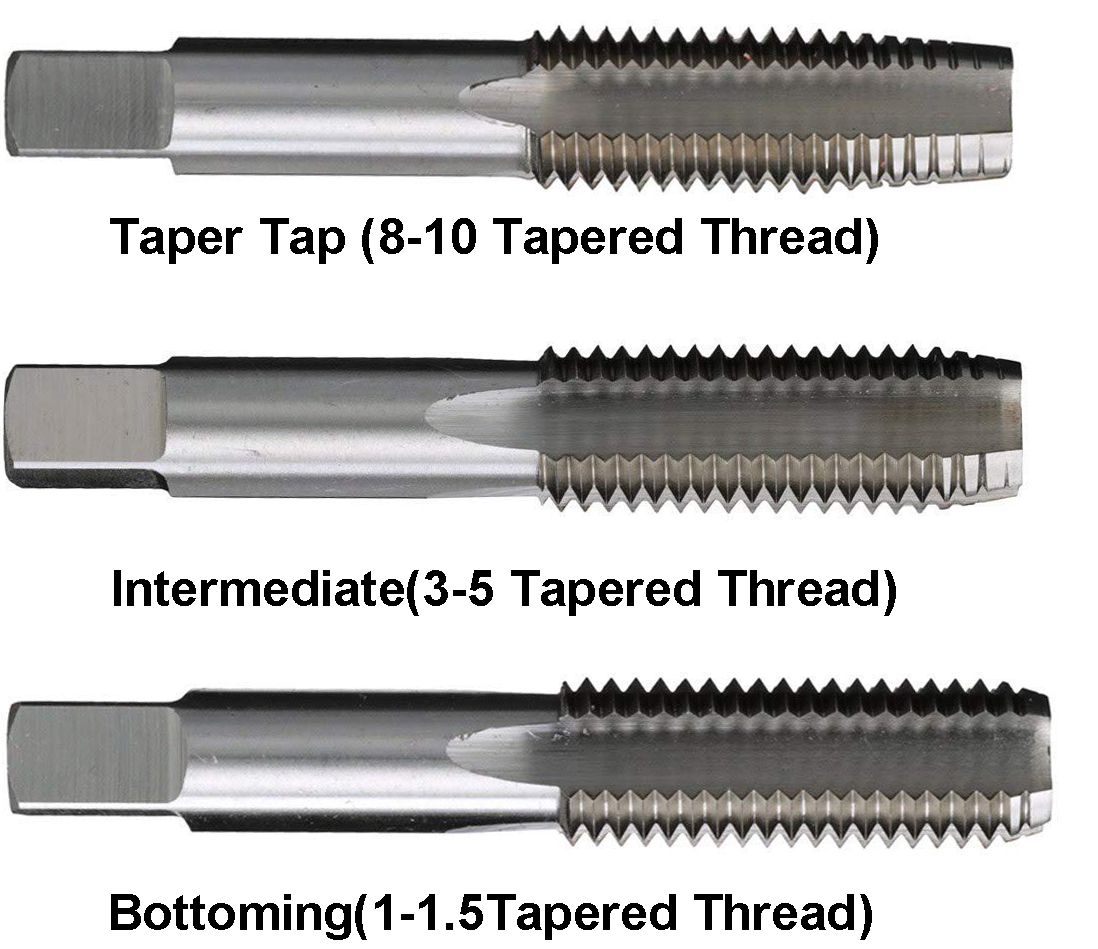

Hand tapping: use a full set (taper, intermediate, bottoming), or just taper and bottoming taps

Thread Tap
Thread tap

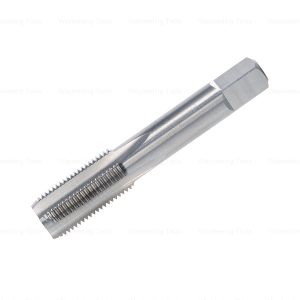

ISO TAPS

Standard taps are supplied as intermediate (INT) taps in HSS (High Speed Steel), with straight flute and bright finish (no coating), suitable for machine use.
If you require taper (TP), bottoming (BTM), spiral flute (SP), spiral point (P), HSS-E (HE), 9CrSi (9C), or TiN / TiAlN coatings, please specify the corresponding code after the P/N.

For hand tapping, a full set—taper (TP), intermediate (INT), and bottoming (BTM)—is recommended.

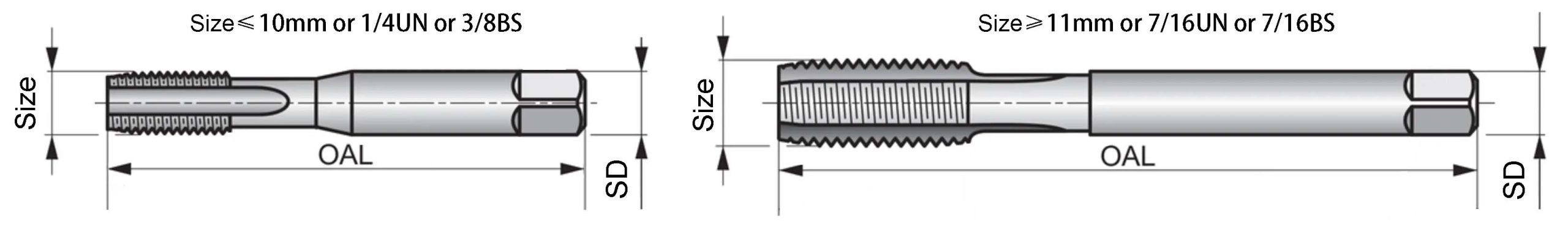

Metric/mm

Size Acc. OAL CL SD P/N
M1×0.25 H2 38.5 5.5 2.5 660-9185
M1×0.2 H2 38.5 5.5 2.5 660-9186
M1.1×0.25 H2 38.5 5.5 2.5 660-9187
M1.1×0.2 H2 38.5 5.5 2.5 660-9188
M1.2×0.25 H2 38.5 5.5 2.5 660-9189
M1.2×0.2 H2 38.5 5.5 2.5 660-9190
M1.4×0.3 H2 40 7 2.5 660-9191
M1.4×0.2 H2 40 7 2.5 660-9192
M1.6×0.35 H2 41 8 2.5 660-9193
M1.6×0.2 H2 41 8 2.5 660-9194
M1.8×0.35 H2 41 8 2.5 660-9195
M1.8×0.2 H2 41 8 2.5 660-9196
M2×0.4 H2 41 8 2.5 660-9197
M2×0.25 H2 41 8 2.5 660-9198
M2.2×0.45 H2 44.5 9.5 2.8 660-9199
M2.2×0.25 H2 44.5 9.5 2.8 660-9200
M2.3×0.45 H2 44.5 9.5 2.8 660-9201
M2.5×0.45 H2 44.5 9.5 2.8 660-9202
M2.5×0.35 H2 44.5 9.5 2.8 660-9203
M2.6×0.45 H2 44.5 9.5 2.8 660-9204
M3×0.5 H2 48 11 3.15 660-9205
M3×0.35 H2 48 11 3.15 660-9206
M3.5×0.6 H2 50 13 3.55 660-9207
M3.5×0.35 H2 50 13 3.55 660-9208
M4×0.7 H2 53 13 4 660-9209
M4×0.5 H2 53 13 4 660-9210
M4×0.35 H2 53 13 4 660-9211
M5×0.8 H2 58 16 5 660-9212
M5×0.5 H2 58 16 5 660-9213
M5.5×0.5 H2 62 17 5.6 660-9214
M6×1.0 H2 66 19 6.3 660-9215
M6×0.75 H2 66 19 6.3 660-9216
M6×0.5 H2 66 19 6.3 660-9217
M7×1.0 H2 66 19 7.1 660-9218
M7×0.75 H2 66 19 7.1 660-9219
M7×0.5 H2 66 19 7.1 660-9220
M8×1.25 H2 72 22 8 660-9221
M8×1.0 H2 72 22 8 660-9222
M8×0.75 H2 66 19 8 660-9223
M8×0.5 H2 66 19 8 660-9224
M9×1.25 H2 72 22 9 660-9225
M9×1.0 H2 72 22 9 660-9226
M9×0.75 H2 66 19 9 660-9227
M9×0.5 H2 66 19 9 660-9228
M10×1.5 H2 80 24 10 660-9229
M10×1.25 H2 80 24 10 660-9230
M10×1.0 H2 80 24 10 660-9231
M10×0.75 H2 73 20 10 660-9232
M10×0.5 H2 73 20 10 660-9233
M11×1.5 H2 85 25 8 660-9234
M11×1.25 H2 80 24 8 660-9235
M11×1.0 H2 80 22 8 660-9236
M11×0.75 H2 80 22 8 660-9237
M11×0.5 H2 80 22 8 660-9238
M12×1.75 H2 89 29 9 660-9239
M12×1.5 H2 89 29 9 660-9240
M12×1.25 H2 89 29 9 660-9241
M12×1.0 H2 80 22 9 660-9242
M12×0.75 H2 80 22 9 660-9243
M12×0.5 H2 80 22 9 660-9244
M13×1.5 H2 89 29 9 660-9245
M13×1.25 H2 89 29 9 660-9246
M13×1.0 H2 80 22 9 660-9247
M14×2.0 H2 95 30 11.2 660-9248
M14×1.75 H2 95 30 11.2 660-9249
M14×1.5 H2 95 30 11.2 660-9250
M14×1.25 H2 95 30 11.2 660-9251
M14×1.0 H2 87 22 11.2 660-9252
M15×1.5 H2 95 30 11.2 660-9253
M15×1.0 H2 87 22 11.2 660-9254
M16×2.0 H2 102 32 12.5 660-9255
M16×1.75 H2 102 32 12.5 660-9256
M16×1.5 H2 102 32 12.5 660-9257
M16×1.25 H2 102 32 12.5 660-9258
M16×1.0 H2 92 22 12.5 660-9259
M17×1.5 H2 102 32 12.5 660-9260
M18×2.5 H2 112 37 14 660-9261
M18×2.0 H2 112 37 14 660-9262
M18×1.75 H2 112 37 14 660-9263
M18×1.5 H2 112 37 14 660-9264
M18×1.0 H2 97 22 14 660-9265
M19×1.5 H2 112 37 14 660-9266
M20×2.5 H2 112 37 14 660-9267
M20×2.0 H2 112 37 14 660-9268
M20×1.5 H2 112 37 14 660-9269
M20×1 H2 102 22 14 660-9270
M22×2.5 H2 118 38 16 660-9271
M22×2 H2 118 38 16 660-9272
M22×1.5 H2 118 38 16 660-9273
M22×1 H2 109 24 16 660-9274
M24×3 H2 130 45 18 660-9275
M24×2.5 H2 130 45 18 660-9276
M24×2 H2 130 45 18 660-9277
M24×1.5 H2 130 45 18 660-9278
M24×1 H2 114 24 18 660-9279
M25×2.0 H2 130 45 18 660-9280
M25×1:5 H2 130 45 18 660-9281
M26×1.5 H2 120 35 18 660-9282
M26×1 H2 114 24 18 660-9283
M27×3 H2 135 45 20 660-9284
M27×2 H2 127 37 20 660-9285
M27×1.5 H2 127 37 20 660-9286
M27×1 H2 120 25 20 660-9287
M28×2 H2 127 37 20 660-9288
M28×1.5 H2 127 37 20 660-9289
M28×1 H2 120 25 20 660-9290
M30×3.5 H2 138 48 20 660-9291
M30×3 H2 138 48 20 660-9292
M30×2 H2 127 37 20 660-9293
M30×1.5 H2 127 37 20 660-9294
M30×1 H2 120 25 20 660-9295
M32×2 H2 137 37 22.4 660-9296
M32×1.5 H2 137 37 22.4 660-9297
M33×3.5 H2 151 51 22.4 660-9298
M33×3 H2 151 51 22.4 660-9299
M33×2 H2 137 37 22.4 660-9300

Size Acc. OAL CL SD P/N
M33×1.5 H2 137 37 22.4 660-9301
M35×1.5 H2 144 39 25 660-9302
M36×4 H2 162 57 25 660-9303
M36×3 H2 162 57 25 660-9304
M36×2.0 H2 144 39 25 660-9305
M36×1.5 H2 144 39 25 660-9306
M38×1.5
 H2 149 39 28 660-9307
M39×4 H2 170 60 28 660-9308
M39×3 H2 170 60 28 660-9309
M39×2 H2 149 39 28 660-9310
M39×1.5 H2 149 39 28 660-9311
M40×3 H2 170 60 28 660-9312
M40×2 H2 149 39 28 660-9313
M40×1.5 H2 149 39 28 660-9314
M42×4.5 H2 170 60 28 660-9315
M42×4 H2 170 60 28 660-9316
M42×3 H2 170 60 28 660-9317
M42×2 H2 149 39 28 660-9318
M42×1.5 H2 149 39 28 660-9319
M45×4.5 H2 187 67 31.5 660-9320
M45×4 H2 187 67 31.5 660-9321
M45×3 H2 187 67 31.5 660-9322
M45×2 H2 165 45 31.5 660-9323
M45×1.5 H2 165 45 31.5 660-9324
M48×5 H2 187 67 31.5 660-9325
M48×4 H2 187 67 31.5 660-9326
M48×3 H2 187 67 31.5 660-9327
M48×2 H2 165 45 31.5 660-9328
M48×1.5 H2 165 45 31.5 660-9329
M50×3 H2 187 67 31.5 660-9330
M50×2 H2 165 45 31.5 660-9331
M50×1.5 H2 165 45 31.5 660-9332
M52×5 H2 200 70 35.5 660-9333
M52×4 H2 200 70 35.5 660-9334
M52×3 H2 200 70 35.5 660-9335
M52×2 H2 175 45 35.5 660-9336
M52×1.5 H2 175 45 35.5 660-9337
M55×4 H2 200 70 35.5 660-9338
M55×3 H2 200 70 35.5 660-9339
M55×2 H2 175 45 35.5 660-9340
M55×1.5 H2 175 45 35.5 660-9341
M56×5.5 H2 200 70 35.5 660-9342
M56×4 H2 200 70 35.5 660-9343
M56×3
 H2 200 70 35.5 660-9344
M56×2 H2 175 45 35.5 660-9345
M56×1.5 H2 175 45 35.5 660-9346
M58×4 H2 209 76 40 660-9347
M58×3 H2 209 76 40 660-9348
M58×2 H2 193 76 40 660-9349
M58×1.5 H2 193 76 40 660-9350
M60×5.5 H2 221 76 40 660-9351
M60×4 H2 209 76 40 660-9352
M60×3 H2 209 76 40 660-9353
M60×2 H2 193 76 40 660-9354
M60×1.5 H2 193 76 40 660-9355
M62×4 H2 209 76 40 660-9356
M62×3
 H2 209 76 40 660-9357
M62×2 H2 193 76 40 660-9358
M62×1.5 H2 193 76 40 660-9359
M64×6 H2 224 79 40 660-9360
M64×4 H2 209 79 40 660-9361
M64×3 H2 209 79 40 660-9362
M64×2 H2 193 79 40 660-9363
M64×1.5 H2 193 79 40 660-9364
M65×4 H2 209 79 40 660-9365
M65×3 H2 209 79 40 660-9366
M65×2 H2 193 79 40 660-9367
M65×1.5 H2 193 79 40 660-9368
M68×6
 H2 234 79 45 660-9369
M68×4 H2 219 79 45 660-9370
M68×3 H2 219 79 45 660-9371
M68×2 H2 203 79 45 660-9372
M68×1.5 H2 203 79 45 660-9373
M70×6 H2 234 79 45 660-9374
M70×4 H2 219 79 45 660-9375
M70×3 H2 219 79 45 660-9376
M70×2 H2 203 79 45 660-9377
M70×1.5 H2 203 79 45 660-9378
M72×6 H2 234 79 45 660-9379
M72×4 H2 219 79 45 660-9380
M72×3
 H2 219 79 45 660-9381
M72×2 H2 203 79 45 660-9382
M72×1.5 H2 203 79 45 660-9383
M75×6 H2 234 79 45 660-9384
M75×4 H2 219 79 45 660-9385
M75×3 H2 219 79 45 660-9386
M75×2 H2 203 79 45 660-9387
M75×1.5 H2 203 79 45 660-9388
M76×6 H2 258 83 50 660-9389
M76×4 H2 242 83 50 660-9390
M76×3 H2 242 83 50 660-9391
M76×2 H2 226 83 50 660-9392
M76×1.5 H2 226 83 50 660-9393
M80×6
 H2 258 83 50 660-9394
M80×4 H2 242 83 50 660-9395
M80×3 H2 242 83 50 660-9396
M80×2 H2 226 83 50 660-9397
M80×1.5 H2 226 83 50 660-9398
M82×2 H2 226 86 50 660-9399
M85×6 H2 261 86 50 660-9400
M85×4 H2 242 86 50 660-9401
M85×3 H2 242 86 50 660-9402
M85×2 H2 226 86 50 660-9403
M90×6 H2 261 86 50 660-9404
M90×4 H2 242 86 50 660-9405
M90×3 H2 242 86 50 660-9406
M90×2
 H2 226 86 50 660-9407
M95×6 H2 279 89 56 660-9408
M95×4 H2 260 89 56 660-9409
M95×3 H2 260 89 56 660-9410
M95×2 H2 244 89 56 660-9411
M100×6 H2 279 89 56 660-9412
M100×4 H2 260 89 56 660-9413
M100×3 H2 260 89 56 660-9414
M100×2 H2 244 89 56 660-9415

UN

Size Acc. OAL CL SD P/N
NO.0-80UNF CL2 41 8 2.5 660-9416
NO.1-72UNF CL2 41 8 2.5 660-9417
NO.1-64UNC CL2 41 8 2.5 660-9418
NO.2-64UNF CL2 44.5 9.5 2.8 660-9419
NO.2-56UNC CL2 44.5 9.5 2.8 660-9420
NO.3-56UNF CL2 44.5 9.5 2.8 660-9421
NO.3-48UNC CL2 44.5 9.5 2.8 660-9422
NO.4-48UNF CL2 48 11 3.15 660-9423
NO.4-40UNC CL2 48 11 3.15 660-9424
NO.5-44UNF CL2 48 11 3.15 660-9425
NO.5-40UNC CL2 48 11 3.15 660-9426
NO.6-48UNS CL2 50 13 3.55 660-9427
NO.6-40UNF CL2 50 13 3.55 660-9428
NO.6-32UNC CL2 50 13 3.55 660-9429
NO.8-36UNF CL2 53 13 4.5 660-9430
NO.8-32UNC CL2 53 13 4.5 660-9431
NO.10-48UNS CL2 58 16 5 660-9432
NO.10-40UNS CL2 58 16 5 660-9433
NO.10-32UNF CL2 58 16 5 660-9434
NO.10-24UNC CL2 58 16 5 660-9435
NO.12-32UNEF CL2 62 17 5.6 660-9436
NO.12-28UNF CL2 62 17 5.6 660-9437
NO.12-24UNC CL2 62 17 5.6 660-9438
3/16-32UNF CL2 58 16 5 660-9439
3/16-24UNC CL2 58 16 5 660-9440
7/32-32UN CL2 62 17 5.6 660-9441
7/32-28UNF CL2 62 17 5.6 660-9442
7/32-24UNC CL2 62 17 5.6 660-9443
1/4-40UNS CL2 66 19 6.3 660-9444
1/4-32UNEF CL2 66 19 6.3 660-9445
1/4-28UNF CL2 66 19 6.3 660-9446
1/4-24UNS CL2 66 19 6.3 660-9447
1/4-20UNC CL2 66 19 6.3 660-9448
5/18-32UNEF CL2 72 22 8 660-9449
5/18-24UNF CL2 72 22 8 660-9450
5/16-18UNC CL2 72 22 8 660-9451
3/8-32UNEF CL2 80 24 10 660-9452
3/8-27UNS CL2 80 24 10 660-9453
3/8-24UNF CL2 80 24 10 660-9454
3/8-20UN CL2 80 24 10 660-9455
3/8-16UNC CL2 80 24 10 660-9456
7/16-40UNS CL2 85 25 8 660-9457
7/16-32UN CL2 85 25 8 660-9458
7/16-28UNEF CL2 85 25 8 660-9459
7/18-20UNF CL2 85 25 8 660-9460
7/16-14UNC CL2 85 25 8 660-9461
1/2-32UN CL2 89 29 9 660-9462
1/2-20UNF CL2 89 29 9 660-9463
1/2-16UN CL2 89 29 9 660-9464
1/2-13UNC CL2 89 29 9 660-9465
1/2-12UNS CL2 89 29 9 660-9466
9/16-32UN CL2 95 30 11.2 660-9467
9/16-24UNEF CL2 95 30 11.2 660-9468
9/16-20UN CL2 95 30 11.2 660-9469
9/16-12UNC CL2 95 30 11.2 660-9470
5/8-32UN CL2 102 32 12.5 660-9471
5/8-24UNEF CL2 102 32 12.5 660-9472
5/8-20UN CL2 102 32 12.5 660-9473
5/8-16UN CL2 102 32 12.5 660-9474
5/8-11UNC CL2 102 32 12.5 660-9475
11/18-24UNEF CL2 112 37 14 660-9476
11/1s-20UN CL2 112 37 14 660-9477
11/18-16UN CL2 112 37 14 660-9478
11/18-12UN CL2 112 37 14 660-9479
3/4-28UN CL2 112 37 14 660-9480
3/4-20UNEF CL2 112 37 14 660-9481
3/4-16UNF CL2 112 37 14 660-9482
3/4-12UN CL2 112 37 14 660-9483
3/4-10UNC CL2 112 37 14 660-9484
13/16-24UNS CL2 112 37 14 660-9485
13/16-20UNEF CL2 112 37 14 660-9486
3/16-16UN CL2 112 37 14 660-9487
13/16-12UN CL2 112 37 14 660-9488
7/8-20UNEF CL2 118 38 16 660-9489
7/8-16UN CL2 118 38 16 660-9490
7/8-14UNF CL2 118 38 16 660-9491
7/8-12UN CL2 118 38 16 660-9492
7/8-9UNC CL2 118 38 16 660-9493
15/16-24UNS CL2 130 45 18 660-9494
15/16-20UNEF CL2 130 45 18 660-9495
15/16-16UN CL2 130 45 18 660-9496
15/16-12UN CL2 130 45 18 660-9497
1-20UNEF CL2 130 45 18 660-9498
1-16UN CL2 130 45 18 660-9499
1-12UNF CL2 130 45 18 660-9500
1-10UNS CL2 130 45 18 660-9501
1-8UNC CL2 130 45 18 660-9502
1 1/16-16UN CL2 127 37 20 660-9503
1 1/16-12UN CL2 127 37 20 660-9504
1 1/16-10UNS CL2 135 45 20 660-9505
1 1/16-8UN CL2 135 45 20 660-9506
1 1/8-20UN CL2 127 37 20 660-9507
1 1/8-12UNF CL2 127 37 20 660-9508
1 1/8-16UN CL2 127 37 20 660-9509
1 1/8-8UN CL2 138 48 20 660-9510
1 1/8-7UNC CL2 138 48 20 660-9511
1 3/16-18UNEF CL2 137 37 22.4 660-9512
1 3/16-16UN CL2 137 37 22.4 660-9513

Size Acc. OAL CL SD P/N
1 3/16-12UN CL2 137 37 22.4 660-9514
1 3/16-8UN CL2 151 51 22.4 660-9515
1 1/4-18UNEF CL2 137 37 22.4 660-9516
1 1/4-16UN CL2 137 37 22.4 660-9517
1 1/4-12UNF CL2 137 37 22.4 660-9518
1 1/4-8UN CL2 151 51 22.4 660-9519
1 1/4-7UNC CL2 151 51 22.4 660-9520
1 5/16-18UNEF CL2 137 37 22.4 660-9521
1 5/16-16UN CL2 137 37 22.4 660-9522
1 5/16-12UN CL2 137 37 22.4 660-9523
1 5/16-8UN CL2 151 51 22.4 660-9524
1 3/8-18UNEF CL2 144 39 25 660-9525
1 3/8-16UN CL2 144 39 25 660-9526
1 3/8-12UNF CL2 144 39 25 660-9527
1 3/8-8UN CL2 162 57 25 660-9528
1 3/8-6UNC CL2 162 57 25 660-9529
1 7/16-18UNEF CL2 144 39 25 660-9530
1 7/16-16UN CL2 144 39 25 660-9531
1 7/16-12UN CL2 144 39 25 660-9532
1 7/16-8UN CL2 162 57 25 660-9533
1 7/16-6UN CL2 162 57 25 660-9534
1 1/2-18UNEF CL2 149 39 28 660-9535
1 12-16UN CL2 149 39 28 660-9536
1 1/2-12UNF CL2 149 39 28 660-9537
1 1/2-8UN CL2 170 60 28 660-9538
1 12-6UNC CL2 170 60 28 660-9539
1 5/8-18UNEF CL2 149 39 28 660-9540
1 5/8-16UN CL2 149 39 28 660-9541
1 5/8-12UN CL2 149 39 28 660-9542
1 5/8-8UN CL2 170 60 28 660-9543
1 5/8-6UN CL2 170 60 28 660-9544
1 5/8-5 1/2UNC CL2 170 60 28 660-9545
1 3/4-20UN CL2 165 45 31.5 660-9546
1 3/4-16UN CL2 165 45 31.5 660-9547
1 3/4-12UN CL2 165 45 31.5 660-9548
1 3/4-8UN CL2 187 67 31.5 660-9549
1 3/4-5UNC CL2 187 67 31.5 660-9550
1 11/16-18UNEF CL2 165 45 31.5 660-9551
1 11/16-16UN CL2 165 45 31.5 660-9552
1 11/16-12UN CL2 165 45 31.5 660-9553
1 11/16-8UN CL2 187 67 31.5 660-9554
1 13/16-18UN CL2 165 45 31.5 660-9555
1 13/16-16UN CL2 165 45 31.5 660-9556
1 13/16-12UN CL2 165 45 31.5 660-9557
1 13/16-8UN CL2 187 67 31.5 660-9558
1 7/8-20UN CL2 165 45 31.5 660-9559
1 7/8-16UN CL2 165 45 31.5 660-9560
1 7/8-8UN CL2 187 67 31.5 660-9561
1 7/-5UNC CL2 187 67 31.5 660-9562
2-16UN CL2 175 45 35.5 660-9563
2-12UN CL2 175 45 35.5 660-9564
2-8UN CL2 200 70 35.5 660-9565
2-4 1/2UNC CL2 200 70 35.5 660-9566
2 1/8-16UN CL2 175 45 35.5 660-9567
2 1/8-12UN CL2 175 45 35.5 660-9568
2 1/8-8UN CL2 200 70 35.5 660-9569
2 1/4-16UN CL2 221 76 40 660-9570
2 1/4-12UN CL2 221 76 40 660-9571
2 1/4-8UN CL2 221 76 40 660-9572
2 1/4-4 1/2UNC CL2 221 76 40 660-9573
2 3/8-16UN CL2 221 76 40 660-9574
2 3/8-12UN CL2 221 76 40 660-9575
2 3/8-8UN CL2 221 76 40 660-9576
2 1/2-16UN CL2 224 79 40 660-9577
2 1/2-12UN CL2 224 79 40 660-9578
2 1/2-4UNC CL2 224 79 40 660-9579
2 5/8-16UN CL2 224 79 40 660-9580
2 5/8-12UN CL2 224 79 40 660-9581
2 5/8-8UN CL2 224 79 40 660-9582
2 3/4-16UN CL2 234 79 45 660-9583
2 3/4-12UN CL2 234 79 45 660-9584
2 3/4-8UN CL2 234 79 45 660-9585
2 3/4-4UNC CL2 234 79 45 660-9586
2 7/8-16UN CL2 234 79 45 660-9587
2 7/8-12UN CL2 234 79 45 660-9588
2 7/8-8UN CL2 234 79 45 660-9589
3-16UN CL2 258 83 50 660-9590
3-12UN CL2 258 83 50 660-9591
3-8UN CL2 258 83 50 660-9592
3-4UNC CL2 258 83 50 660-9593
3 1/8-8UN CL2 258 83 50 660-9594
3 1/4-16UN CL2 261 86 50 660-9595
3 1/4-12UN CL2 261 86 50 660-9596
3 1/4-8UN CL2 261 86 50 660-9597
3 1/4-4UNC CL2 261 86 50 660-9598
3 1/2-16UN CL2 261 86 50 660-9599
3 1/2-12UN CL2 261 86 50 660-9600
3 1/2-8UN CL2 261 86 50 660-9601
3 1/2-4UNC CL2 261 86 50 660-9602
3 3/4-16UN CL2 279 89 56 660-9603
3 3/4-12UN CL2 279 89 56 660-9604
3 3/4-8UN CL2 279 89 56 660-9605
3 3/4-4UNC CL2 279 89 56 660-9606
4-16UN CL2 279 89 56 660-9607
4-12UN CL2 279 89 56 660-9608
4-8UN CL2 279 89 56 660-9609
4-4UNC CL2 279 89 56 660-9610

BS

Size Acc. OAL CL SD P/N
1/8-40BSW CL2 48 11 3.15 660-9611
3/16-32BSF CL2 58 16 5 660-9612
3/16-24BSW CL2 58 16 5 660-9613
7/32-28BSF CL2 62 17 5.6 660-9614
1/4-32BS CL2 66 19 6.3 660-9615
1/4-26BSF CL2 66 19 6.3 660-9616
1/4-20BSW CL2 66 19 6.3 660-9617
9/32-26BSF CL2 66 19 7.1 660-9618
5/16-32BS CL2 72 22 8 660-9619
5/16-26BS CL2 72 22 8 660-9620
5/16-22BSF CL2 72 22 8 660-9621
5/16-18BSW CL2 72 22 8 660-9622
3/8-32BS CL2 80 24 10 660-9623
3/8-26BS CL2 80 24 10 660-9624
3/8-20BSF CL2 80 24 10 660-9625
3/8-16BSW CL2 80 24 10 660-9626
7/16-26BS CL2 85 25 8 660-9627
7/16-18BSF CL2 85 25 8 660-9628
7/16-14BSW CL2 85 25 8 660-9629
1/2-20BS CL2 89 29 9 660-9630
1/2-16BSF CL2 89 29 9 660-9631
1/2-12BSW CL2 89 29 9 660-9632
9/16-20BS CL2 95 30 11.2 660-9633
9/16-16BSF CL2 95 30 11.2 660-9634
9/16-12BSW CL2 95 30 11.2 660-9635
5/8-20BS CL2 102 32 12.5 660-9636
5/8-14BSF CL2 102 32 12.5 660-9637
5/8-11BSW CL2 102 32 12.5 660-9638
11/16-20BS CL2 112 37 14 660-9639
11/16-16BS CL2 112 37 14 660-9640
11/16-14BSF CL2 112 37 14 660-9641
11/16-11BSW CL2 112 37 14 660-9642
3/4-20BS CL2 112 37 14 660-9643
3/4-16BS CL2 112 37 14 660-9644
3/4-12BSF CL2 112 37 14 660-9645
3/4-10BSW CL2 112 37 14 660-9646
7/8-20BS CL2 118 38 16 660-9647
7/8-11BSF CL2 118 38 16 660-9648
7/8-9BSW CL2 118 38 16 660-9649
1-20BS CL2 130 45 18 660-9650
1-12BS CL2 130 45 18 660-9651
1-10BSF CL2 130 45 18 660-9652
Size Acc. OAL CL SD P/N
1-8BSW CL2 130 45 18 660-9653
1 1/8-12BS CL2 127 37 20 660-9654
1 1/8-9BSF CL2 138 48 20 660-9655
1 1/8-7BSW CL2 138 48 20 660-9656
1 1/4-12BS CL2 137 37 22.4 660-9657
1 1/4-9BSF CL2 151 51 22.4 660-9658
1 1/4-7BSW CL2 151 51 22.4 660-9659
1 3/8-20BS CL2 144 39 25 660-9660
1 3/8-12BS CL2 144 39 25 660-9661
1 3/8-8BSF CL2 162 57 25 660-9662
1 3/8-6BSW CL2 162 57 25 660-9663
1 1/2-20BS CL2 149 39 28 660-9664
1 1/2-12BS CL2 149 39 28 660-9665
1 1/2-8BSF CL2 170 60 28 660-9666
1 1/2-6BSW CL2 170 60 28 660-9667
1 5/8-12BS CL2 149 39 28 660-9668
1 5/8-8BSF CL2 170 60 28 660-9669
1 5/8-5BSW CL2 170 60 28 660-9670
1 3/4-16BS CL2 165 45 31.5 660-9671
1 3/4-8BS CL2 187 67 31.5 660-9672
1 3/4-7BSF CL2 187 67 31.5 660-9673
1 3/4-5BSW CL2 187 67 31.5 660-9674
2-12BS CL2 175 45 35.5 660-9675
2-7BSF CL2 200 70 35.5 660-9676
2-4 1/2BSW CL2 200 70 35.5 660-9677
2 1/4-12BS CL2 221 76 40 660-9678
2 1/4-6BSF CL2 221 76 40 660-9679
2 1/4-4BSW CL2 221 76 40 660-9680
2 1/2-6BSF CL2 224 79 40 660-9681
2 1/2-4BSW CL2 224 79 40 660-9682
2 3/4-6BSF CL2 234 79 45 660-9683
2 3/4-3 1/2BSW CL2 234 79 45 660-9684
3-5BSF CL2 258 83 50 660-9685
3-3 1/2BSW CL2 258 83 50 660-9686
3 1/4-5BSF CL2 261 86 50 660-9687
3 1/4-3 1/4BSW CL2 261 86 50 660-9688
3 1/2-4 1/2BSF CL2 261 86 50 660-9689
3 1/2-3 1/4BSW CL2 261 86 50 660-9690
3 3/4-4 1/2BSF CL2 279 89 56 660-9691
3 3/4-3BSW CL2 279 89 56 660-9692
4-4 1/2BSF CL2 279 89 56 660-9693
4-3BSW CL2 279 89 56 660-9694



Application

Functions For ISO529 Taps:
ISO taps are tools used to cut or form internal threads in pre-drilled holes according to ISO 529 standards.

Tap Types
Straight Flute Tap: For through holes and blind holes. Commonly used in hand tapping or low-speed machine operations.
Spiral Flute Tap: Designed for blind holes. The spiral flute helps evacuate chips upward, reducing the risk of breakage.
Spiral Point Tap: Suitable for through holes. Chips are pushed forward, improving cutting efficiency.
Forming Tap: Forms threads by deformation rather than cutting. Recommended for ductile materials such as aluminum and mild steel.

Applications For ISO529 Taps:

ISO taps are widely used in:
Metalworking and manufacturing – For producing internal threads in carbon steel, alloy steel, stainless steel, aluminum, copper, and other metals.
Mold making and machinery assembly – Ensuring precise and standardized threaded connections.
Maintenance and repair – For retapping or restoring damaged threads.
Workshops and small-scale fabrication – For hand tapping in softer metals and plastics such as polycarbonate and nylon.
Tap selection depends on the work material, whether the hole is through or blind, and the required thread tolerance.

Precautions For ISO529 Taps:

1. Use the correct tap type for the material and hole type.
2. Ensure the pilot hole is drilled to the correct size (generally: tap drill size = major diameter – pitch).
3. Always use proper lubrication to reduce heat and friction.
4. Follow appropriate speed and feed settings to avoid overloading the tap.
5. Break chips regularly during tapping to prevent clogging.
6. Clean taps after use and store them in a dry place to avoid rust.
7. Inspect for wear or chipping, and replace taps as needed to maintain thread quality.

Advantage

Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More

Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More

Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More

OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More

Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More

Matching Items

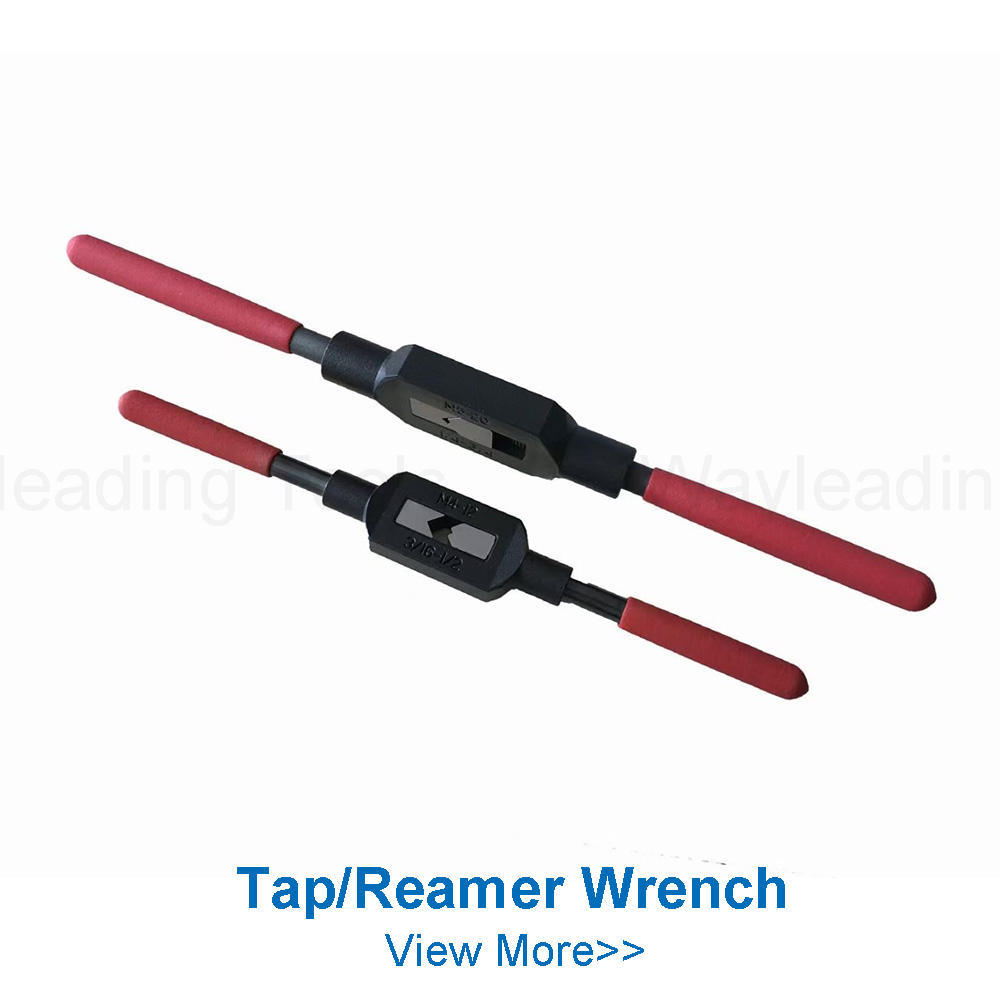

Tap Wrench 3

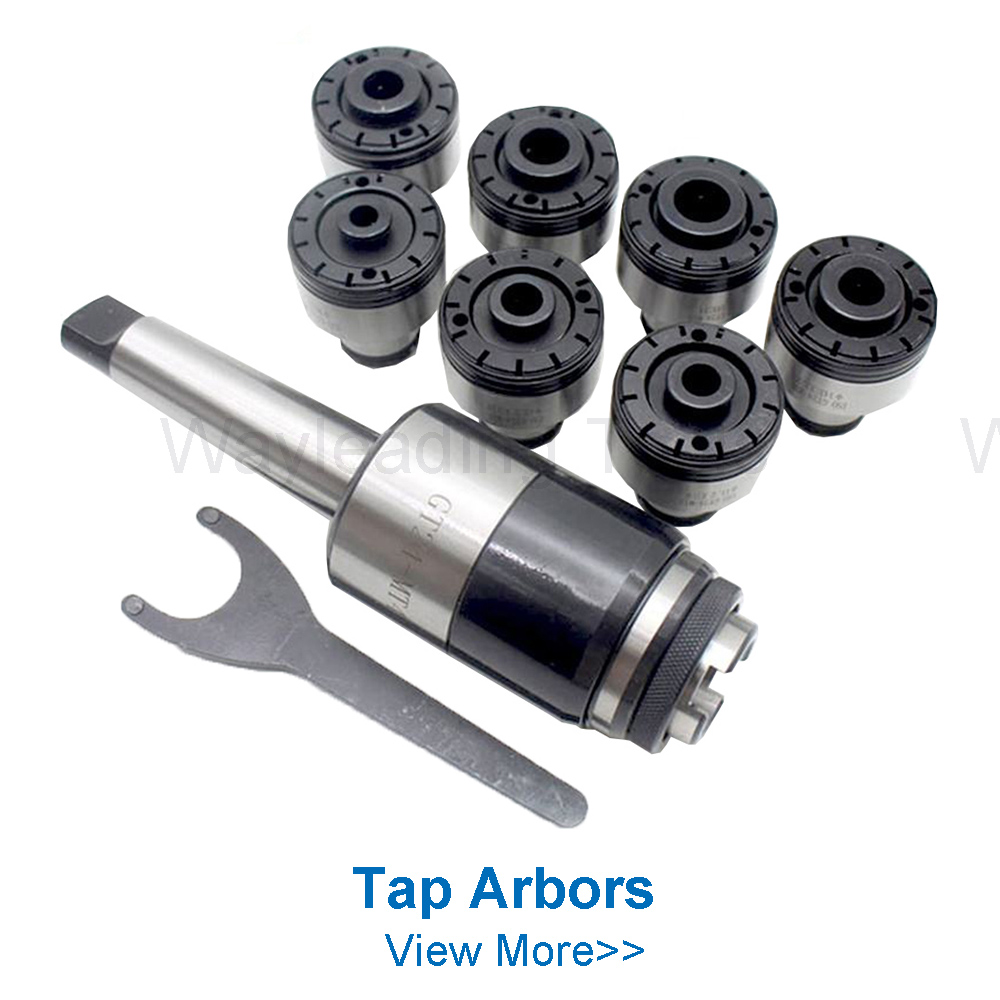

Tap Arbors
Tap Wrench 2

Solution

Technical Support:
We are delighted to be your solution provider for ISO529 taps. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.

Customized Services:
We are pleased to offer you customized services for ISO529 taps. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.

Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days

After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience.

Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you.

Packing

Packaged in a plastic box via heat shrink bag. Then packed in an outer box. It can be well prevented from rusting.
Also customized packing is welcomed.

ISO529 taps-1
  • Previous:
  • Next:
    • Please contact us for further information. To assist you more effectively, Kindly provide the following details:
    ● Specific product models and the approximate quantities you require.
    ● Do you require OEM, OBM, ODM or neutral packing for your products?
    ● Your company name and contact information for prompt and accurate feedback.
    Additional, we invite you to request samples for quality testing.

    Leave Your Message

      Write your message here and send it to us

      related products

      Leave Your Message

        Hit enter to search or ESC to close
