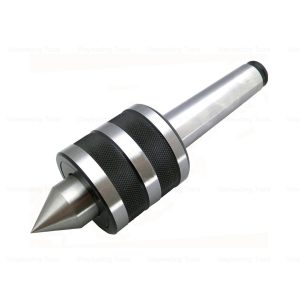

High Precision Medium-Duty Live Center – Hardened Tip, Morse Taper Shank
Midium Duty Live Center
Thank you for your interest in our medium-duty live centers.
Medium-duty live center designed for lathe tailstocks. Suitable for turning operations up to 3000 RPM and capable of handling workpiece loads up to 10,000 N, depending on the taper size. Delivers smooth and dependable performance in general machining tasks.
Any further info. Feel free to contact us.
| Model | Ms. No. | L(mm) | L1(mm) | D(mm) | D1(mm) | d(mm) | Order No. |
| D411 | MT1 | 115 | 20 | 34 | 12.065 | 18 | 660-8692 |
| D412 | MT2 | 145 | 26 | 45 | 17.78 | 25 | 660-8693 |
| D413 | MT3 | 170 | 30 | 52 | 23.825 | 28 | 660-8694 |
| D414 | MT4 | 205.7 | 34.7 | 60 | 31.267 | 32 | 660-8695 |
| D415 | MT5 | 254 | 45 | 77 | 44.399 | 45 | 660-8696 |
| D416 | MT6 | 362 | 68.5 | 125 | 63.348 | 75 | 660-8697 |
| D411L | MT1 | 125 | 30 | 34 | 12.065 | 18 | 660-8698 |
| D412L | MT2 | 155 | 36 | 45 | 17.78 | 25 | 660-8699 |
| D413L | MT3 | 183 | 43 | 52 | 23.825 | 28 | 660-8700 |
| D414L | MT4 | 222 | 51 | 60 | 31.267 | 32 | 660-8701 |
| D415L | MT5 | 272 | 63 | 77 | 44.399 | 45 | 660-8702 |
| D416L | MT6 | 382 | 88.5 | 125 | 63.348 | 75 | 660-8703 |
Application
Functions For Medium-Duty Live Centers:
The medium-duty live center is a rotary support tool mounted on the tailstock of a lathe. It uses precision bearings to rotate with the workpiece, reducing friction and ensuring stable support during machining.
Usage For Medium-Duty Live Centers:
● Clean the Morse taper shank and tailstock socket before installation.
● Insert the live center into the tailstock and lock it securely.
● Adjust the tailstock position to make the center point contact the workpiece properly.
● Start the lathe and ensure smooth rotation without abnormal noise or vibration.
● After use, remove and wipe the live center, then store it in a dry place.
Precautions For Medium-Duty Live Centers:
● Do not exceed the rated speed or load capacity.
● Avoid collision or impact on the center point.
● Use proper lubrication if the model is not sealed.
● Regularly check for wear or bearing noise.
● Always match taper size correctly to prevent misalignment.
Advantage
Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More
Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More
Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More
OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More
Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More
Matching Items
Solution
Technical Support:
We are delighted to be your solution provider for medium-duty live centers. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.Click Here For More
Customized Services:
We are pleased to offer you customized services for medium-duty live centers. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.Click Here For More
Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days Click Here For More
After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience. Click Here For More
Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you. Click Here For More

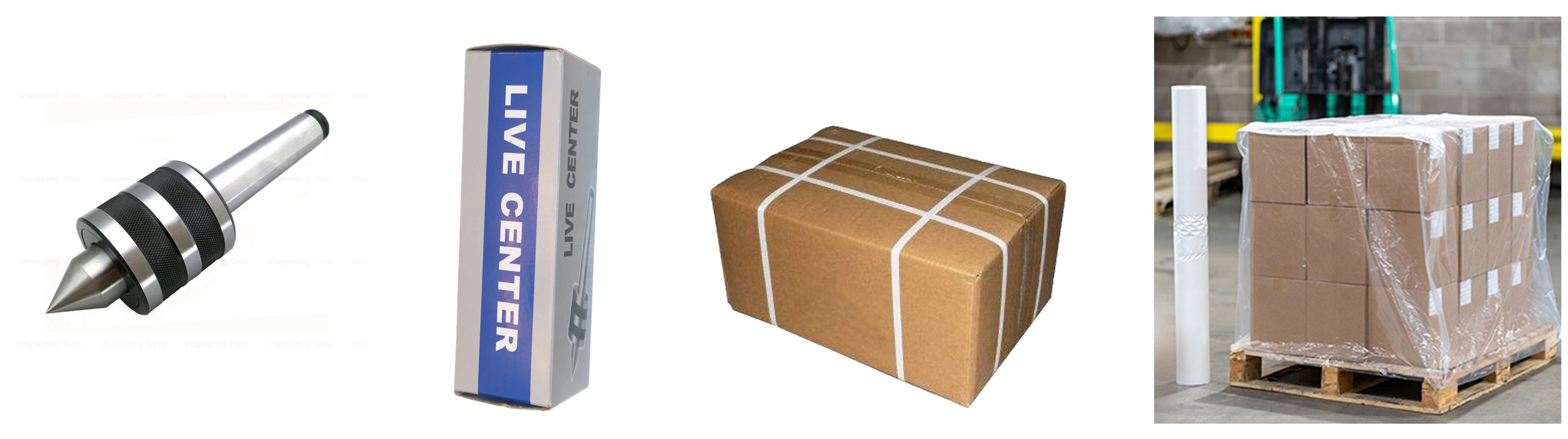

Packing
