Premium Outside Micrometer – Metric & Inch, Ratchet Stop, Industrial Grade

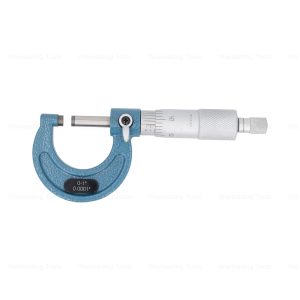

Outside Micrometer
We appreciate your interest in our outside micrometers.
The standard graduations are 0.01 mm for metric and 0.001" for inch.
We also offer models with a thimble scale graduated in 0.01 mm or 0.001", and a vernier scale allowing readings to 0.001 mm or 0.0001".
Micrometer sets in various configurations are also available.
Any further info. Feel free to contact us.
Metric
| Measuring Range | Graduation | Order No. |
| 0-25mm | 0.01mm | 860-0029 |
| 25-50mm | 0.01mm | 860-0030 |
| 50-75mm | 0.01mm | 860-0031 |

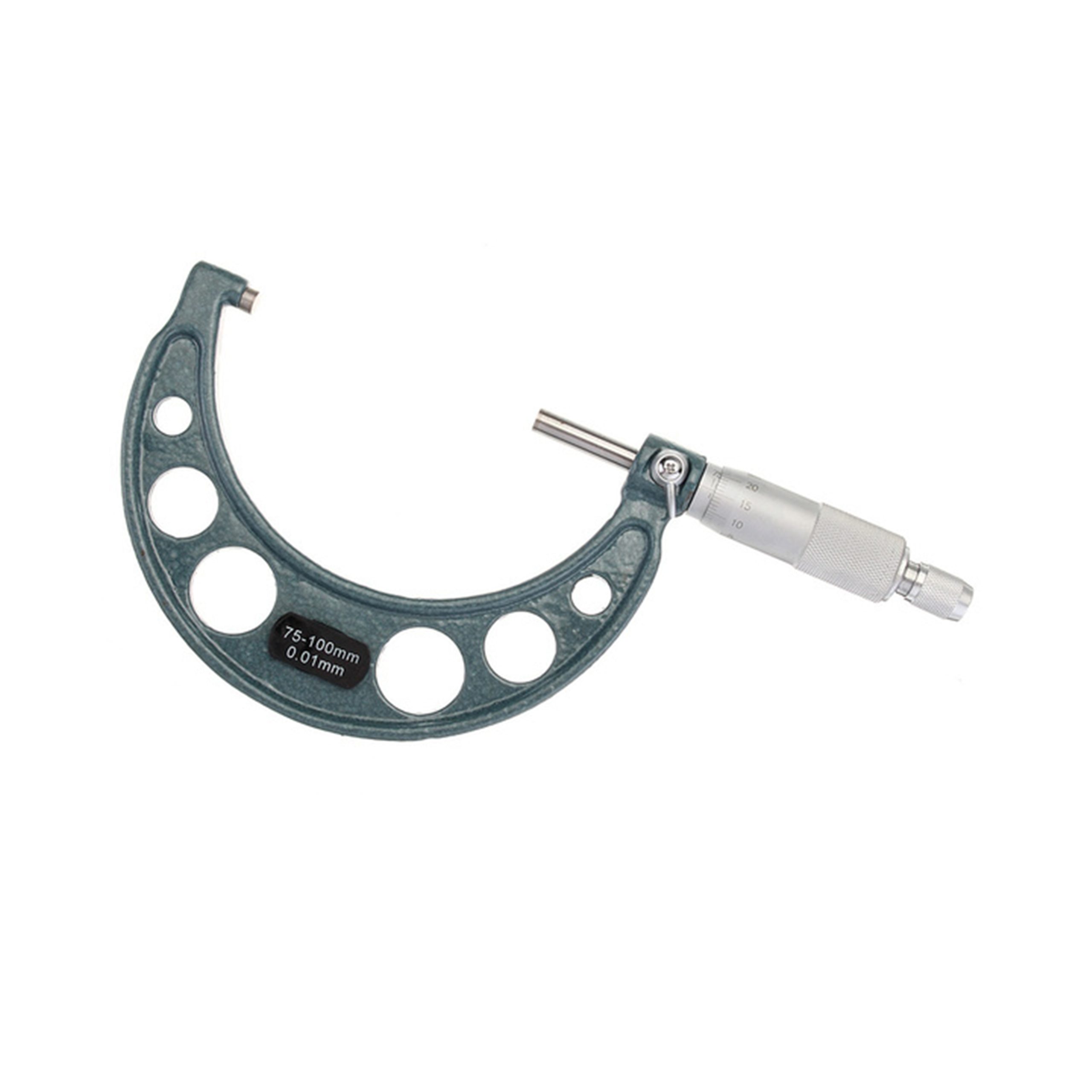

| 75-100mm | 0.01mm | 860-0032 |
| 100-125mm | 0.01mm | 860-0033 |
| 125-150mm | 0.01mm | 860-0034 |
| 150-175mm | 0.01mm | 860-0035 |
| 175-200mm | 0.01mm | 860-0036 |
| 200-225mm | 0.01mm | 860-0037 |
| 225-250mm | 0.01mm | 860-0038 |
| 250-275mm | 0.01mm | 860-0039 |
| 275-300mm | 0.01mm | 860-0040 |
| Measuring Range | Graduation | Order No. |
| 0-25mm | 0.001mm | 860-1197 |
| 25-50mm | 0.001mm | 860-1198 |
| 50-75mm | 0.001mm | 860-1199 |
| 75-100mm | 0.001mm | 860-1200 |
| 100-125mm | 0.001mm | 860-1201 |
| 125-150mm | 0.001mm | 860-1202 |
| 150-175mm | 0.001mm | 860-1203 |
| 175-200mm | 0.001mm | 860-1204 |
Inch
| Measuring Range | Graduation | Order No. |
| 0-1" | 0.001" | 860-0045 |
| 1-2" | 0.001" | 860-0046 |
| 2-3" | 0.001" | 860-0047 |
| 3-4" | 0.001" | 860-0048 |
| 4-5" | 0.001" | 860-0049 |
| 5-6" | 0.001" | 860-0050 |
| 6-7" | 0.001" | 860-0051 |
| 7-8" | 0.001" | 860-0052 |
| 8-9" | 0.001" | 860-0053 |
| 9-10" | 0.001" | 860-0054 |
| 10-11" | 0.001" | 860-0055 |
| 11-12" | 0.001" | 860-0056 |
| Measuring Range | Graduation | Order No. |
| 0-1" | 0.0001" | 860-1205 |
| 1-2" | 0.0001" | 860-1206 |
| 2-3" | 0.0001" | 860-1207 |
| 3-4" | 0.0001" | 860-1208 |
| 4-5" | 0.0001" | 860-1209 |
| 5-6" | 0.0001" | 860-1210 |
| 6-7" | 0.0001" | 860-1211 |
| 7-8" | 0.0001" | 860-1212 |

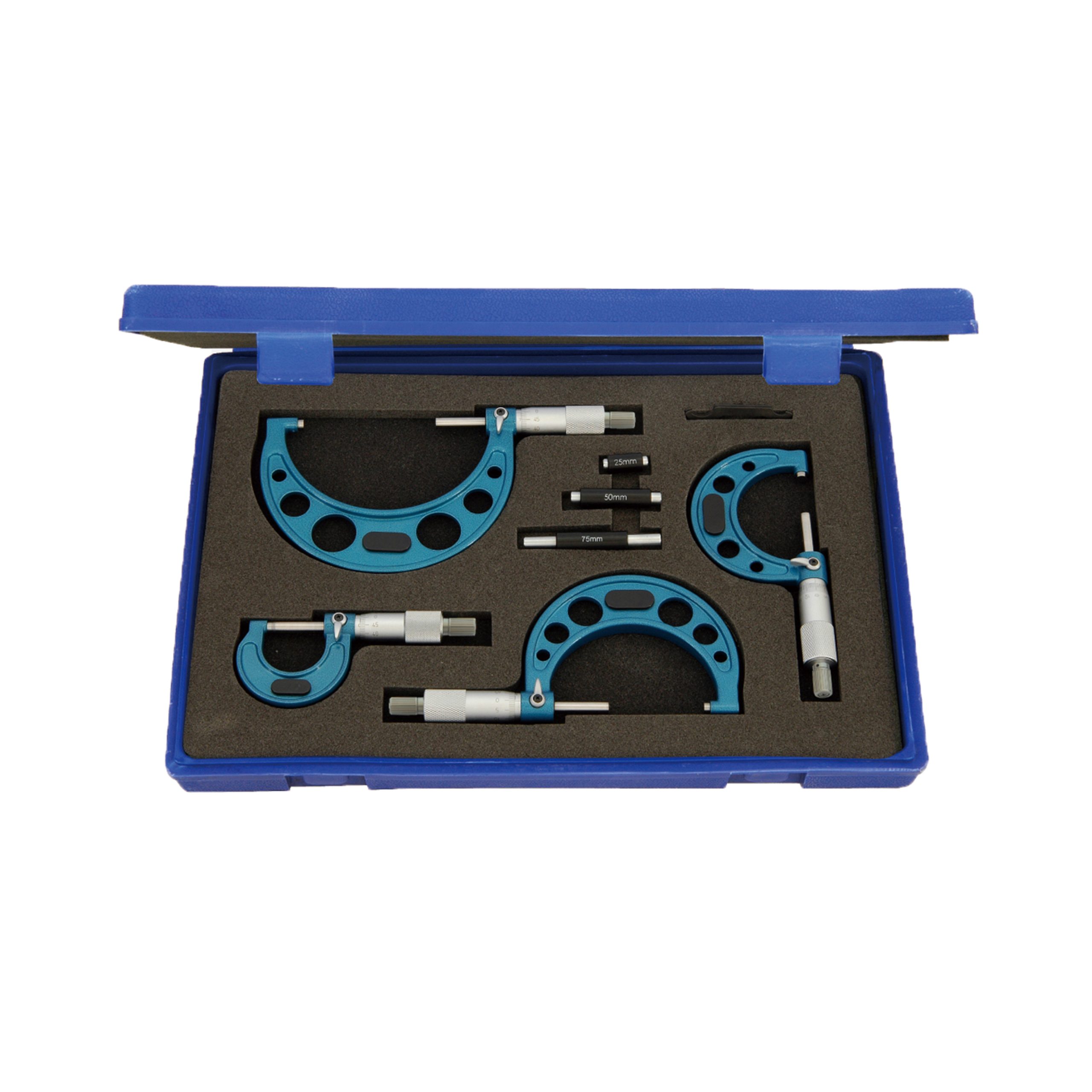

Set
| Measuring Range | Pieces | Graduation | Order No. |
| 0-75mm | 3 | 0.01mm | 860-1213 |
| 0-100mm | 4 | 0.01mm | 860-1214 |
| 0-150mm | 6 | 0.01mm | 860-1215 |
| 150-300mm | 6 | 0.01mm | 860-1216 |
| 0-300mm | 12 | 0.01mm | 860-1217 |
| Measuring Range | Pieces | Graduation | Order No. |
| 0-3" | 3 | 0.001" | 860-1218 |
| 0-4" | 4 | 0.001" | 860-1219 |
| 0-6" | 6 | 0.001" | 860-1220 |
| 6-12" | 6 | 0.001" | 860-1221 |
| 0-12" | 12 | 0.001" | 860-1222 |
Application
Functions For Indexable Turning Tool Holder:
The outside micrometer is a mechanical instrument used for accurate measurement of external dimensions, typically in the range of 0–25 mm or its multiples. It operates through a precision-ground screw mechanism, allowing consistent and repeatable measurements. Some models include a spindle lock to hold the reading during inspection.
Usage For Indexable Turning Tool Holder:
This tool is commonly used in machine shops, inspection rooms, and assembly lines to measure:
● Outside diameters of shafts, rods, and bolts
● Thickness of flat parts, metal sheets, or washers
● External features of precision components
It is a standard tool in metalworking, toolmaking, and maintenance departments.
Precautions For Indexable Turning Tool Holder:
● Wipe the measuring faces clean before use to avoid inaccurate readings.
● When measuring, apply pressure using the ratchet or friction thimble; never force the spindle.
● After use, return the micrometer to its case to protect it from dust and moisture.
● Avoid dropping the tool or using it for purposes other than measurement.
● Periodically check and adjust the zero point to maintain accuracy.
Advantage
Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More
Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More
Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More
OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More
Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More

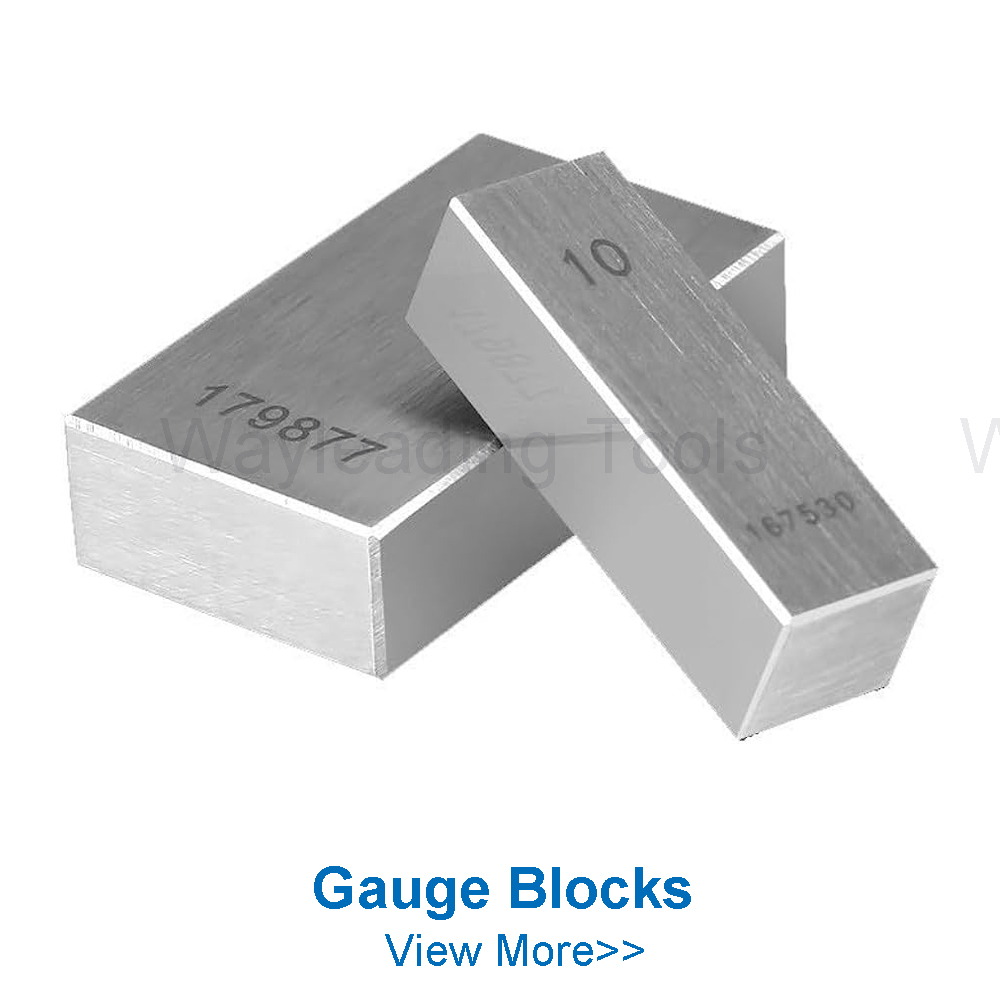

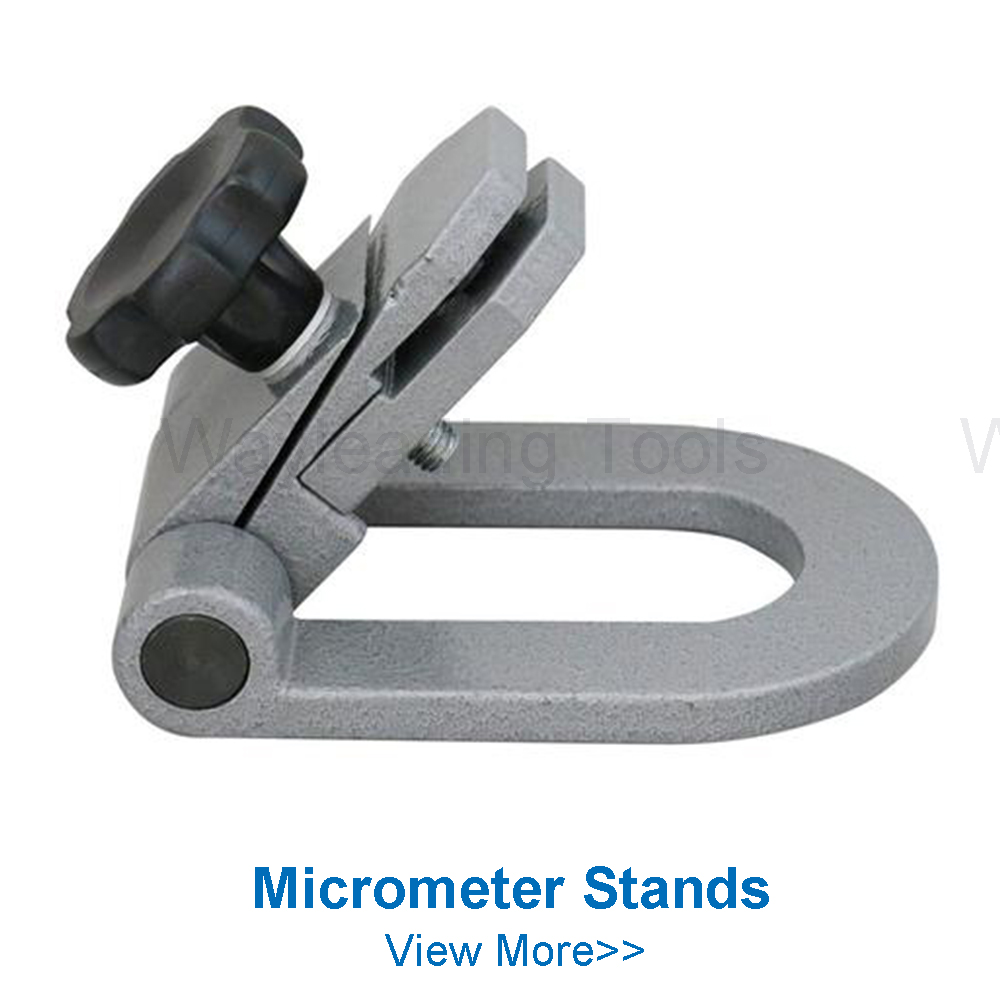

Matching Items
Solution
Technical Support:
We are delighted to be your solution provider for outside micrometers. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.Click Here For More
Customized Services:
We are pleased to offer you customized services for outside micrometers. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.Click Here For More
Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days Click Here For More
After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience. Click Here For More
Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you. Click Here For More
Packing

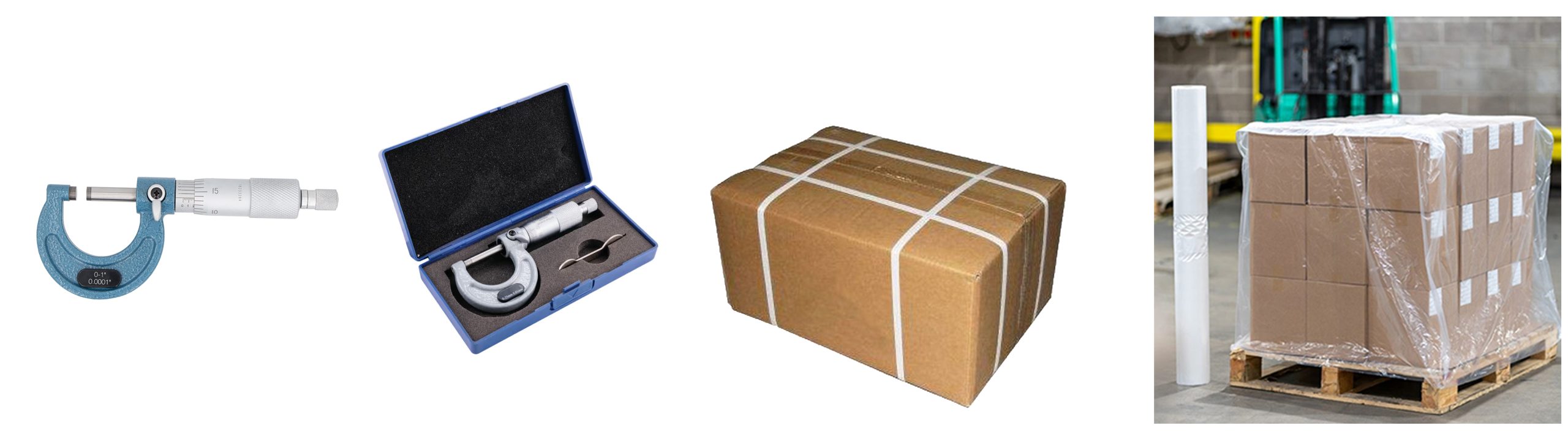

Packaged in a plastic box. Then packed in an outer box. It can be well protecting the indexable turning tool holder. Also customized packing is welcomed.
Please contact us for further information. To assist you more effectively, Kindly provide the following details:
● Specific product models and the approximate quantities you require.
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
